Use GitHub Codespaces

You can run IS-IS labs in (free¹) GitHub codespaces; all you need is a GitHub account:

• Create a new codespace for your IS-IS labs or connect to an existing codespace.

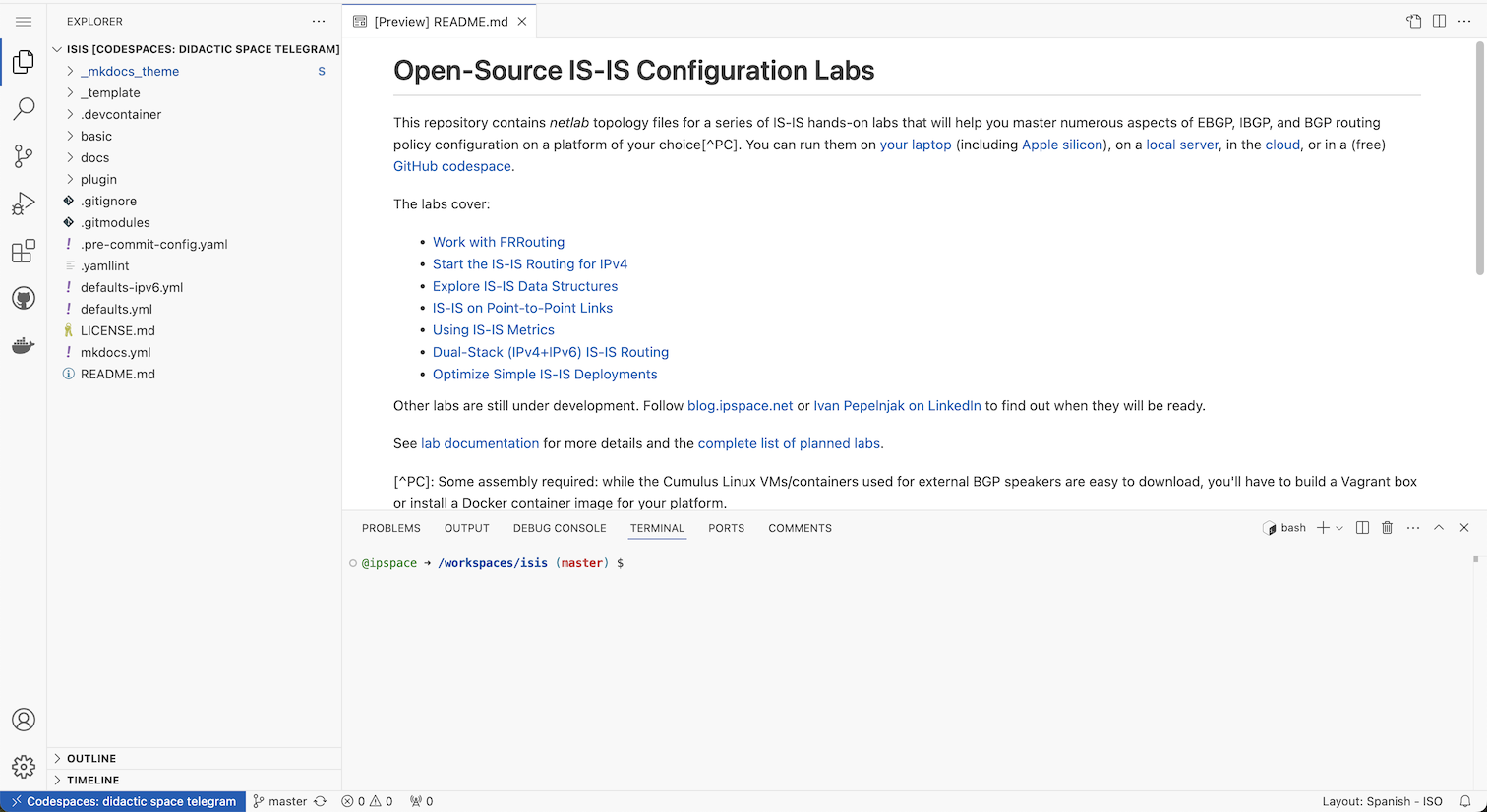

• Unless you’re using GitHub codespaces with VS Code (in which case you know what to do), your codespace opens in a new browser window with three tabs: Explorer (repository folders), Preview (starting with README), and Terminal.

Select Lab Devices

The IS-IS labs repository uses FRRouting containers as the default device. You can change that with the netlab defaults --project device=_value_ command executed in the top directory (where the terminal window opens) or edit the defaults.yml file with a text editor like vi or nano.

For example, the following command changes the user lab devices to SR Linux²:

$ netlab defaults --project device=srlinux
The default setting device is already set in project defaults
Do you want to change that setting in project defaults [y/n]: y
device set to srlinux in /home/user/isis/defaults.yml

Here are a few device selection guidelines:

• It’s best to use network devices with free-to-download container images:

Device	Device type to use in netlab defaults command
FRRouting	frr
Nokia SR Linux	srlinux
VyOS	vyos

• Use FRRouting to use the 2 CPU/8 GB codespaces VM with more extensive labs. Other containers, like Arista cEOS or Nokia SR-Linux, need more memory.
• Do not use FRRouting for multi-level IS-IS lab exercises. FRRouting cannot distribute level-1 IS-IS routes into level-2 topology or vice versa.
• Codespaces have persistent storage; you can download and install other containers.
• To use containers that have to be downloaded from the vendors’ website, download them onto your laptop, drag-and-drop them into the Folders, and install them like you would on a local netlab instance.
• Virtual machines cannot be run in GitHub Codespaces, which also precludes running VMs within containers (the vrnetlab approach).

Start a Lab

Once you have the codespaces up and running:

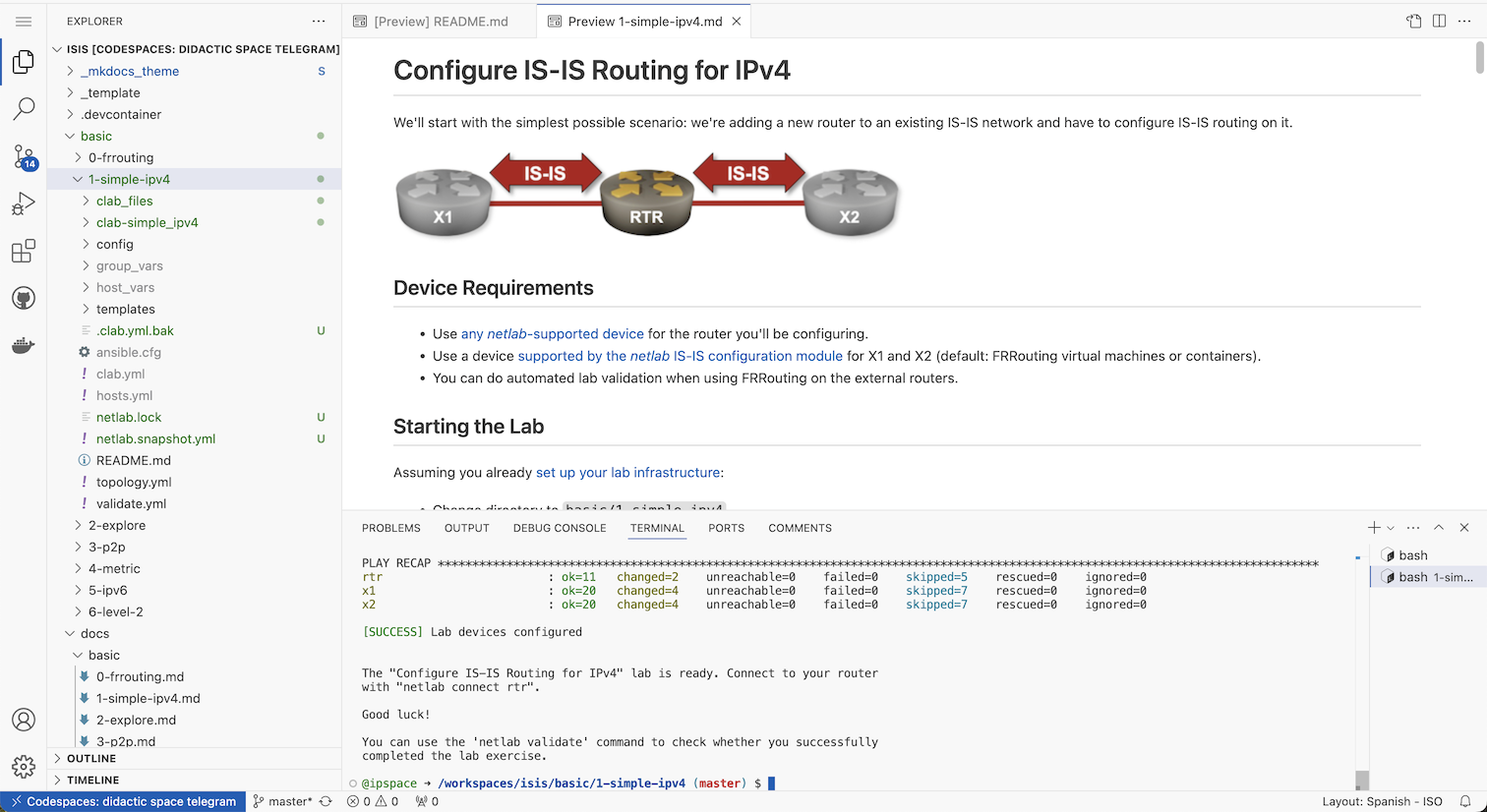

• Click on the desired lab exercise in the README.md preview window to select the exercise folder.
• Right-click on the exercise folder and select “Open in Integrated Terminal” to launch a bash session in the desired directory.
• Execute netlab up to start the lab.
• Expand the exercise folder in the Explorer tab.
• Right-click on the README.md file and select “Open Preview” to open the rendered version of the file.
• Click the link in the README.md file to get the exercise description in the preview pane.
• Connect to your devices with the netlab connect command executed in the Terminal pane.

Cleanup and Shutdown

Finally, don’t forget to shut down the lab with netlab down and stop your codespace after you’re done:

• Click on the blue “Codespaces” button in the bottom-left corner of the browser window.
• Select “Stop Current Codespace”. You should also adjust idle timeout and default retention period in your codespaces settings.
