Multilevel IS-IS Deployments

By Dan Partelly

Like OSPF, IS-IS was designed when router memory was measured in megabytes and CPU speeds in MHz. The scalability of a routing protocol and the reduced memory footprint on the edge (access) routers were crucial. OSPF solved that conundrum with areas, and IS-IS solved it with multi-level topology¹; some IS-IS routers know only about prefixes in their area (level-1 routers), while others know the whole network topology (level-2 routers), but might not be aware of the internal structure of other areas.

Decent modern IS-IS implementations have no problems running a single-level IS-IS network with hundreds of routers, and the memory requirements are usually a non-issue. However, you might still find edge cases where a multi-level deployment might be beneficial. For example, your edge switches might have small hardware forwarding tables, or you might want to limit the blast radius of network failures – IS-IS limits the LSP flooding to a single area (or the level-2 backbone)².

In this exercise, you’ll explore multi-level IS-IS deployment using a simple 5-router topology:

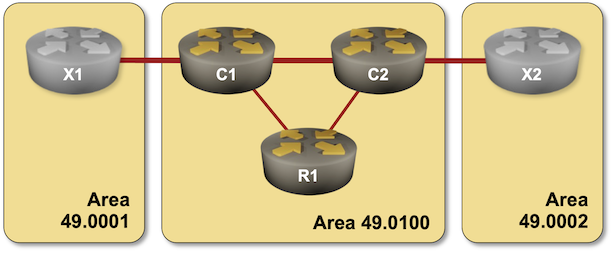

Lab topology

Device Requirements

Use any device supported by the netlab IS-IS configuration module that correctly implements the distribution of intra-area (level-1) routes into inter-area (level-2) backbone.

Unfortunately, this leaves FRRouting off the table. As of August 2025, FRRouting’s IS-IS implementation is incomplete and does not propagate level-1 IP prefixes into the level-2 LSP database as required by RFC 1195. Nevertheless, the implemented parts are solid, and FRR can be used without problems in single-level IS-IS deployments.

Starting the Lab

You can start the lab on your own lab infrastructure or in GitHub Codespaces (more details):

Change directory to advanced/1-multiarea
Execute netlab up
Log into lab devices with netlab connect

Existing Device Configuration

When starting the lab, netlab configures IPv4 addresses and IS-IS protocol on the lab routers.

All five routers are configured as L2 IS-IS routers, as recommended in Configure IS-IS Routing for IPv4. This results in a flat level-2 multi-area topology. Routers use the following areas:

Node	Router ID	IS-IS Area
r1	10.0.0.1	49.0100
c1	10.0.0.2	49.0100
c2	10.0.0.3	49.0100
x1	10.0.0.4	49.0001
x2	10.0.0.5	49.0002

Initial Routing Tables

After starting the lab, you should have full reachability between all routers’ loopback interfaces, and every router will have a full view of the network.

The routing tables you can observe on your devices are relatively large for a small network of 5 routers. Now imagine a network with hundreds of routers, each advertising tens of subnets, and remember that decades ago, people were rightfully concerned about the routing (and forwarding) table sizes.

IS-IS routes on R1 running Arista cEOS

r1#show ip route isis

VRF: default
Source Codes:
       I L1 - IS-IS level 1,
       I L2 - IS-IS level 2,
....

 I L2     10.0.0.2/32 [115/20]
           via 10.1.0.1, Ethernet1
 I L2     10.0.0.3/32 [115/20]
           via 10.1.0.5, Ethernet2
 I L2     10.0.0.4/32 [115/30]
           via 10.1.0.1, Ethernet1
 I L2     10.0.0.5/32 [115/30]
           via 10.1.0.5, Ethernet2
 I L2     10.1.0.8/30 [115/20]
           via 10.1.0.1, Ethernet1
           via 10.1.0.5, Ethernet2
 I L2     10.1.0.12/30 [115/20]
           via 10.1.0.1, Ethernet1
 I L2     10.1.0.16/30 [115/20]
           via 10.1.0.5, Ethernet2

Make R1 a Level-1 Router

Let’s see if we can minimize the size of the R1 routing table. Make router R1 a level-1 IS-IS router. The configuration command you need should be pretty familiar (after all, you configured the routers to be level-2 routers in one of the early lab exercises).

Examine the R1 routing table once it’s configured as a level-1 router.

IS-IS routes on R1 (Arista cEOS) running as a level-1 router

r1#show ip route isis

VRF: default
Source Codes:
       I L1 - IS-IS level 1,
       I L2 - IS-IS level 2,
....

We lost all IS-IS routes. Let’s figure out what went wrong, starting with the IS-IS interfaces and IS-IS adjacencies:

R1 (Arista cEOS) runs IS-IS on two Ethernet interfaces, but has no IS-IS adjacencies

r1#show isis interface brief

IS-IS Instance: Gandalf VRF: default

Interface Level IPv4 Metric IPv6 Metric Type           Adjacency
--------- ----- ----------- ----------- -------------- ---------
Loopback0 L1             10          10 loopback       (passive)
Ethernet2 L1             10          10 point-to-point         0
Ethernet1 L1             10          10 point-to-point         0

r1#show isis neighbors

Let’s restore the lost adjacencies. Before doing that, we need a short detour through the IS-IS adjacency rules to understand why R1 lost all its neighbors.

Level-1 and Level-2 Adjacency Rules in IS-IS

As mentioned, IS-IS uses areas (level-1 routing) connected via an overlay inter-area routing topology (level-2 routing). In many ways, the inter-area overlay is similar to an OSPF backbone, but with many significant differences. Every router can participate in intra-area routing (level-1 router), inter-area routing (level-2 router), or both (level-1-2 router).

In OSPF, all inter-area traffic must go through area zero (the backbone area). Any other area must connect to the backbone area, resulting in a strict hierarchical network. Consequently, border routers must have at least one interface in the backbone area.

Compared to OSPF, IS-IS has more flexible requirements. Backbone routers (L2 routers), often referred to as “transit routers” in IS-IS parlance, are not required to be part of a “transit area” or belong to the same area.

The only requirement imposed on an IS-IS transit network is the end-to-end level-2 continuity through L2 adjacencies across all transit routers. Both L2 and L1/L2 routers can ensure the required level-2 continuity.

The rules governing adjacency formation in IS-IS are simple:

Level-1 (intra-area) routers form adjacencies only with level-1 or level-1-2 routers in the same area. A direct consequence of this is that they cannot be border routers.
Level-2 routers form L2 adjacencies with other level-2 routers, or with level-1-2 routers. They can form adjacencies with routers in other areas. This is important; the only way to connect two different areas in IS-IS is through an L2 adjacency.
Level-1-2 routers can form both L1 and L2 adjacencies. They maintain a separate topological database for each of those levels. They act as border routers and manifest many similarities with the OSPF Area Border Routers.

The adjacency that two routers try to establish depends on their configuration. You can specify the router type in the IS-IS routing process, or limit the adjacency type on a single interface with an interface configuration command. The two parameters limit the IS-IS hellos (IIH) sent through an interface³, thus directly limiting the adjacencies that can be formed through it.

Make C1 and C2 Level-1-2 Routers

Now that you know the rules, it’s easy to see why R1 lost its adjacency with C1 and C2. A level-1 router cannot form an adjacency with a level-2 router.

To fix the problem, change the IS-IS router type of C1 and C2 to level-1-2. Again, the command to do that should be familiar by now.

When you are done, check the IS-IS adjacencies on R1 to see if you solved the adjacency problem we found at the end of the previous configuration task.

IS-IS neighbors on R1 running Arista cEOS

r1#show isis neighbors

Instance  VRF      System Id        Type Interface          SNPA              State Hold time   Circuit Id
Gandalf   default  c1               L1   Ethernet1          P2P               UP    29          B0
Gandalf   default  c2               L1   Ethernet2          P2P               UP    24          AF

As expected, the adjacency problem is solved. Next, let’s check the IS-IS LSP database and the routing table on R1:

IS-IS database on R1 running Arista cEOS

r1#show isis database
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
  IS-IS Level 1 Link State Database
    LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
    r1.00-00                      7  24422   834    118 L1  0000.0000.0001.00-00  <>
    c1.00-00                      4  12846   835    131 L2  0000.0000.0002.00-00  <DefaultAtt>
    c2.00-00                      4  61785   835    131 L2  0000.0000.0003.00-00  <DefaultAtt>

You will immediately notice that R1 lost the full topological view of the network. The IS-IS database contains only LSPs originated by C1, C2, and R1.

What about the R1 routing table?

IS-IS routes on R1

r1#show ip route isis

VRF: default
     I L1 - IS-IS level 1,
     I L2 - IS-IS level 2,
...
Gateway of last resort:
 I L1     0.0.0.0/0 [115/10]
           via 10.1.0.1, Ethernet1
           via 10.1.0.5, Ethernet2

 I L1     10.0.0.2/32 [115/20]
           via 10.1.0.1, Ethernet1
 I L1     10.0.0.3/32 [115/20]
           via 10.1.0.5, Ethernet2
 I L1     10.1.0.8/30 [115/20]
           via 10.1.0.1, Ethernet1
           via 10.1.0.5, Ethernet2
 I L1     10.1.0.12/30 [115/20]
           via 10.1.0.1, Ethernet1
 I L1     10.1.0.16/30 [115/20]
           via 10.1.0.5, Ethernet2

We can see that the type of IS-IS routes changed from L2 to L1, and X1/X2 loopbacks are no longer in the routing table. The routing table accurately reflects the fact that R1 lost visibility of the level-2 network topology. However, the transit subnets C1-X1 and C2-X2 are still in the routing table.

This is unexpected. X1 and X2 are level-2 routers; we already know they formed level-2 adjacencies with C1 and C2. It would be logical to have those subnets only in the level-2 LSPs.

To understand why those routes are present as L1 routes and what we can do about them, we must explore the concept of IS-IS circuit types.

IS-IS Circuit Type

You can define an IS-IS router as level-1, level-1-2, or level-2-only. IS-IS allows you to do the same for links⁴ (which they call circuits).

The purpose of the IS-IS circuit type is often described as controlling the adjacencies that can be formed over a link. While that’s true, it’s also misleading. ISO DP 10589 and RFC 1195 describe how you can use the IS-IS circuit type (applied to an interface) to:

Determine whether an interface operates at level-1, level-2, or both levels
Control which types of IS-IS adjacencies can form on the interface
Specify which LSP types (L1, L2, or both) are exchanged on the interface
Enforce network hierarchy (use circuit type as part of the implementation of the IS-IS two-level hierarchical design)

From a practical point of view:

A level-1 circuit participates only in intra-area routing
A level-2 circuit participates only in inter-area backbone routing
A level-1-2 circuit can and will participate in both levels

Now for the interesting bit: the participates in routing part affects whether the interface subnet is inserted into L1 and L2 LSPs that a router generates:

level-1 circuit: the subnet is included only in the L1 LSP
level-2 circuit: the subnet is included only in the L2 LSP
level-1-2 circuit: the subnet is included in L1 LSP and L2 LSP, regardless of the adjacencies formed over that circuit.

For example, even if a router has only a level-2 adjacency on a level-1-2 circuit, the IP Interface Address TLV and the IP Internal Reachability TLV will still appear in the L1 LSP. Let’s check whether that’s what we’re dealing with, and inspect the IS-IS adjacencies and circuit types on C1⁵:

C1’s neighbors and IS-IS interface status - Arista cEOS

c1#show isis neighbors

Instance  VRF      System Id        Type Interface          SNPA              State Hold time   Circuit Id
Gandalf   default  r1               L1   Ethernet1          P2P               UP    24          10
Gandalf   default  c2               L1L2 Ethernet2          P2P               UP    27          17
Gandalf   default  x1               L2   Ethernet3          P2P               UP    29          00

c1#show isis interface brief

IS-IS Instance: Gandalf VRF: default

Interface Level IPv4 Metric IPv6 Metric Type           Adjacency
--------- ----- ----------- ----------- -------------- ---------
Ethernet3 L1L2           10          10 point-to-point         1
Loopback0 L1L2           10          10 loopback       (passive)
Ethernet1 L1L2           10          10 point-to-point         1
Ethernet2 L1L2           10          10 point-to-point         2

Looking at the printouts, it’s easy to confirm that:

We have a level-2-only adjacency between C1 and X1 (over Ethernet3 interface)
The IS-IS circuit type (shown as Level in Arista EOS printout) of that interface is L1L2, which means that the interface subnet appears in C1’s L1 LSP and L2 LSP.

The information in C1’s L1 LSPs should no longer surprise us:

The details of C1 level-1 LSP (inspected on R1 running Arista cEOS)

r1#show isis database detail c1.00-00
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
IS-IS Level 1 Link State Database
LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
c1.00-00                      4  20496   392    131 L2  0000.0000.0002.00-00  <DefaultAtt>
LSP received time: 2025-08-17 10:03:40
Remaining lifetime received: 1199 s Modified to: 1200 s
NLPID: 0xCC(IPv4)
Hostname: c1
Area addresses: 49.0100
Interface address: 10.1.0.9
Interface address: 10.1.0.1
Interface address: 10.0.0.2
Interface address: 10.1.0.13
IS Neighbor          : c2.00               Metric: 10
IS Neighbor          : r1.00               Metric: 10
Reachability         : 10.1.0.8/30 Metric: 10 Type: 1 Up
Reachability         : 10.1.0.0/30 Metric: 10 Type: 1 Up
Reachability         : 10.0.0.2/32 Metric: 10 Type: 1 Up
Reachability         : 10.1.0.12/30 Metric: 10 Type: 1 Up
Router Capabilities: Router Id: 10.0.0.2 Flags: []
Area leader priority: 250 algorithm: 0

Configure IS-IS Circuit Types

Let’s remove the inter-area subnets (C1-X1, C2-X2) from the L1 LSP.

Change the IS-IS circuit type on the C1-X1 and C2-X2 links to level-2-only using an interface configuration command similar to isis circuit-type⁶

Revalidating R1 Routing Information

Once the configuration is done, examine the C1 and C2 LSPs on R1.

C1’s L1 LSP after the IS-IS circuit type has been changed (observed on R1 running Arista cEOS)

r1#show isis database detail c1.00-00
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
IS-IS Level 1 Link State Database
LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
c1.00-00                      9  38951  1047    118 L2  0000.0000.0002.00-00  <DefaultAtt>
LSP received time: 2025-08-17 11:02:44
Remaining lifetime received: 1199 s Modified to: 1200 s
NLPID: 0xCC(IPv4)
Hostname: c1
Area addresses: 49.0100
Interface address: 10.1.0.9
Interface address: 10.1.0.1
Interface address: 10.0.0.2
IS Neighbor          : c2.00               Metric: 10
IS Neighbor          : r1.00               Metric: 10
Reachability         : 10.1.0.8/30 Metric: 10 Type: 1 Up
Reachability         : 10.1.0.0/30 Metric: 10 Type: 1 Up
Reachability         : 10.0.0.2/32 Metric: 10 Type: 1 Up
Router Capabilities: Router Id: 10.0.0.2 Flags: []
Area leader priority: 250 algorithm: 0

We did it. The troublesome TLVs are no longer in the LSP. That should be reflected in the R1’s routing table:

IS-IS routes on R1

r1#show ip route isis

VRF: default
I L1 - IS-IS level 1,
I L2 - IS-IS level 2,
...
Gateway of last resort:
I L1     0.0.0.0/0 [115/10]
via 10.1.0.1, Ethernet1
via 10.1.0.5, Ethernet2

I L1     10.0.0.2/32 [115/20]
via 10.1.0.1, Ethernet1
I L1     10.0.0.3/32 [115/20]
via 10.1.0.5, Ethernet2
I L1     10.1.0.8/30 [115/20]
via 10.1.0.1, Ethernet1
via 10.1.0.5, Ethernet2

Mission accomplished. The transit networks towards routers in other areas are gone from the intra-area (level-1) topology, but you can still find them in the level-2 LSPs⁷. The reduction of the IP routing table on R1 is significant (almost 50%), even at the small scale of our exercise.

Finally, let’s confirm that the smaller routing table on R1 did not break the end-to-end connectivity. R1 should still be able to reach X1 and X2:

Inter-area connectivity tests on R1

r1#ping 10.0.0.4
PING 10.0.0.4 (10.0.0.4) 72(100) bytes of data.
80 bytes from 10.0.0.4: icmp_seq=1 ttl=63 time=0.479 ms
80 bytes from 10.0.0.4: icmp_seq=2 ttl=63 time=0.144 ms
....

r1#ping 10.0.0.5
PING 10.0.0.5 (10.0.0.5) 72(100) bytes of data.
80 bytes from 10.0.0.5: icmp_seq=1 ttl=63 time=0.801 ms
80 bytes from 10.0.0.5: icmp_seq=2 ttl=63 time=0.345 ms
....

Despite no longer having a route to X1 and X2’s loopbacks, R1 can still reach them.

Astute engineers might have noticed something interesting in the R1 routing table: an ECMP default route pointing towards C1 and C2. This route is the key to reaching the level-2 backbone and, implicitly, other IS-IS areas.

Let’s see how this default route is created.

IS-IS Default Routing

Let’s start our exploration with the high-level overview of the contents of the level-1 LSP database:

IS-IS level-1 database (observed on C1 running Arista cEOS)

c1#show isis database level-1
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
  IS-IS Level 1 Link State Database
    LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
    r1.00-00                      8  23911  1019    118 L1  0000.0000.0001.00-00  <>
    c1.00-00                     10  38440  1051    118 L2  0000.0000.0002.00-00  <DefaultAtt>
    c2.00-00                      9  47353   670    118 L2  0000.0000.0003.00-00  <DefaultAtt>

Notice that the LSPs originated by C1 and C2 have the ATT flag set. The full name of this flag is “Attached”, and in the words of ISO_IEC_10589_2002, a level-1-2 router considers itself attached when

it can reach at least one other area using the corresponding routeing metric, or
It has at least one enabled reachable address prefix with the corresponding metric defined.

If a router considers itself attached, it will originate L1 LSPs with the ATT flag set. This has the following effects:

The ATT flag signals level-1 routers in the same area that the router advertising it can carry traffic to the level-2 backbone and into other areas. The level-1-2 router advertises itself as an exit point from a level-1 area.
Level-1 routers receiving an LSP with the ATT bit set will insert a default route pointing to the router that sent the LSP into their IP routing table.

Back to the default routes we saw earlier in R1’s routing table. In our topology, both C1 and C2 consider themselves attached to the level-2 backbone, and they both originate L1 LSPs with the ATT bit set.

Router R1 has ECMP enabled by default, so it uses both C1 and C2 as the exit points from the level-1 area and adds two default routes to its IP routing table.

Distribution of L1 Routes into L2 Backbone

We have already checked that R1 can reach routers in other areas (X1 and X2), but we still need to explore another part of the puzzle: how do X1 and X2 know about R1? After all, they are in different areas, and don’t know anything about the internal structure of R1’s area (49.0100)

IS-IS solves this problem by automatically distributing level-1 prefixes into level-2 LSPs on level-1-2 routers. Straight from RFC 1195:

Level 2 routers include in their level 2 LSPs a complete list of [IP address, subnet mask, metric] specifying all IP addresses reachable in their area. As described in section 3, this information may be obtained from a combination of the level 1 LSPs (obtained from level-1 routers in the same area) and/or by manual configuration.

Distributing intra-area information into L2 LSP allows routers from other areas to reach destinations within the area.

Let’s check whether C1 is doing the right thing and inspect the contents of its level-1 and level-2 LSP databases:

R1 LSP as observed in the IS-IS level-1 database on C1 (running Arista cEOS)

c1#show isis database level-1 r1.00-00 detail
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
  IS-IS Level 1 Link State Database
    LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
    r1.00-00                      8  23911   982    118 L1  0000.0000.0001.00-00  <>
      LSP received time: 2025-08-17 11:09:07
      Remaining lifetime received: 1199 s Modified to: 1200 s
      NLPID: 0xCC(IPv4)
      Hostname: r1
      Area addresses: 49.0100
      Interface address: 10.1.0.6
      Interface address: 10.1.0.2
      Interface address: 10.0.0.1
      IS Neighbor          : c2.00               Metric: 10
      IS Neighbor          : c1.00               Metric: 10
      Reachability         : 10.1.0.4/30 Metric: 10 Type: 1 Up
      Reachability         : 10.1.0.0/30 Metric: 10 Type: 1 Up
      Reachability         : 10.0.0.1/32 Metric: 10 Type: 1 Up
      Router Capabilities: Router Id: 10.0.0.1 Flags: []
        Area leader priority: 250 algorithm: 0

Level-2 LSP originated by C1 running Arista cEOS

show isis database level-2 c1.00-00 detail
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
  IS-IS Level 2 Link State Database
    LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
    c1.00-00                     19  32881  1045    160 L2  0000.0000.0002.00-00  <>
      LSP generation remaining wait time: 0 ms
      Time remaining until refresh: 745 s
      NLPID: 0xCC(IPv4)
      Hostname: c1
      Area addresses: 49.0100
      Interface address: 10.1.0.9
      Interface address: 10.1.0.1
      Interface address: 10.0.0.2
      Interface address: 10.1.0.13
      IS Neighbor          : x1.00               Metric: 10
      IS Neighbor          : c2.00               Metric: 10
      Reachability         : 10.0.0.3/32 Metric: 20 Type: 1 Up
      Reachability         : 10.0.0.1/32 Metric: 20 Type: 1 Up
      Reachability         : 10.1.0.4/30 Metric: 20 Type: 1 Up
      Reachability         : 10.1.0.8/30 Metric: 10 Type: 1 Up
      Reachability         : 10.1.0.0/30 Metric: 10 Type: 1 Up
      Reachability         : 10.0.0.2/32 Metric: 10 Type: 1 Up
      Reachability         : 10.1.0.12/30 Metric: 10 Type: 1 Up
      Router Capabilities: Router Id: 10.0.0.2 Flags: []
        Area leader priority: 250 algorithm: 0

As you can see, C1 inserted the information from R1 L1 LSP into its own L2 LSP. When that information is propagated across the level-2 backbone, other level-2 routers use it in their routing tables.

IS-IS routing table on X1 running FRRouting

$ netlab connect x1 --show ip route isis
Connecting to container clab-multiarea-x1, executing vtysh -c "show ip route isis"
Codes: K - kernel route, C - connected, L - local, S - static,
       R - RIP, O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
       T - Table, v - VNC, V - VNC-Direct, A - Babel, F - PBR,
       f - OpenFabric, t - Table-Direct,
       > - selected route, * - FIB route, q - queued, r - rejected, b - backup
       t - trapped, o - offload failure

IPv4 unicast VRF default:
I>* 10.0.0.1/32 [115/30] via 10.1.0.13, eth1, weight 1, 01:52:10
I>* 10.0.0.2/32 [115/20] via 10.1.0.13, eth1, weight 1, 04:46:37
I>* 10.0.0.3/32 [115/30] via 10.1.0.13, eth1, weight 1, 01:51:40
I>* 10.0.0.5/32 [115/40] via 10.1.0.13, eth1, weight 1, 01:51:41
I>* 10.1.0.0/30 [115/20] via 10.1.0.13, eth1, weight 1, 04:46:37
I>* 10.1.0.4/30 [115/30] via 10.1.0.13, eth1, weight 1, 01:52:10
I>* 10.1.0.8/30 [115/20] via 10.1.0.13, eth1, weight 1, 04:46:37
I   10.1.0.12/30 [115/20] via 10.1.0.13, eth1 inactive, weight 1, 04:46:37
I>* 10.1.0.16/30 [115/30] via 10.1.0.13, eth1, weight 1, 01:51:40

Suboptimal Inter-Area Routing

Every time you have an L1 area with multiple gateways, you might get suboptimal routing toward some out-of-area destinations, as the level-1 routers always send their traffic toward the nearest level-2 router.

Let’s trace the paths towards X1 and X2 from R1. This is what Arista EOS has to say⁸:

The traceroute command shows suboptimal routing from R1 toward X2

r1#traceroute 10.0.0.4
traceroute to x1 (10.0.0.4), 30 hops max, 60 byte packets
 1  c1 (10.1.0.1)  0.043 ms  0.008 ms  0.007 ms
 2  x1 (10.0.0.4)  1.113 ms  1.132 ms  1.396 ms


r1#traceroute 10.0.0.5
traceroute to x2 (10.0.0.5), 30 hops max, 60 byte packets
 1  c1 (10.1.0.1)  0.040 ms  0.009 ms  0.007 ms
 2  c2 (10.1.0.10)  0.635 ms  0.656 ms  0.863 ms
 3  x2 (10.0.0.5)  2.034 ms  2.077 ms  2.205 ms

Notice the suboptimal path R1 takes to reach X2. Although X2 is directly connected to C2, and C2 can be used as a default gateway, the outgoing traffic flows through C1.

Disabling ECMP ⁹ does not solve the problem. If you do that, R1 will generate just one default route from the LSP database and choose the LSP with the ATT flag set following these rules¹⁰:

The closest (based on the metric) level-1-2 router with the ATT flag set
When multiple equidistant level-1-2 routers exist, choose the one with the highest SystemID.

Takeaway: Carefully consider using level-1 areas and accept that sub-optimal routing can occur. Consider the practical advice from Configure IS-IS Routing for IPv4 before resorting to level-1 areas. In most cases, performance or scalability is no longer a good reason to deploy multi-level IS-IS networks.

Partitioning the Transit Network

Finally, let’s see what happens when the level-2 backbone breaks (the official term is partitions). Before starting, let’s verify that we have connectivity from X1 to X2:

Check transit connectivity through the IS-IS area 49.0100

$ netlab connect -q x1 ping 10.0.0.5
PING x2 (10.0.0.5): 56 data bytes
64 bytes from 10.0.0.5: seq=0 ttl=62 time=1.427 ms
64 bytes from 10.0.0.5: seq=1 ttl=62 time=1.377 ms
....

Next, shut down the link between C1 and C2 (shutting down the Ethernet2 interface on C2 will do the trick). Although there’s the physical path between X1 and X2 (X1→C1→R1→C2→X2), X1 cannot reach X2:

X1 cannot reach X2 once the C1-C2 link is shut down

$ netlab connect -q x1 ping 10.0.0.5
PING x2 (10.0.0.5): 56 data bytes
ping: sendto: Network unreachable

Takeaway: The level-2 backbone MUST NOT become partitioned. IS-IS has no mechanism like OSPF virtual links that could stitch together a partitioned level-2 backbone.

Before Moving On

Congratulations. You have completed the first step of the multi-level IS-IS journey.

There is no specific validation test included with the lab. However, at the end of the exercise (and once you restored the C1-C2 link), you should have:

R1 working as level-1 router
C1 and C2 working as level-1-2 routers
C1 and C2’s interfaces connecting them to routers in other areas configured as level-2 IS-IS circuits
R1 being able to ping X1 and X2
X1 being able to ping X2

Next: Distributing Level-2 IS-IS Routes into Level-1 Areas

Reference Information

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
r1	Ethernet1	c1	Ethernet1
r1	Ethernet2	c2	Ethernet1
c1	Ethernet2	c2	Ethernet2
c1	Ethernet3	x1	eth1
c2	Ethernet3	x2	eth1

Note

The interface names depend on the lab devices you use. The printout was generated with user routers running Arista EOS and X1/X2 running FRRouting.

Lab Addressing

Node/Interface	IPv4 Address	Description
r1	10.0.0.1/32	Loopback
Ethernet1	10.1.0.2/30	r1 -> c1
Ethernet2	10.1.0.6/30	r1 -> c2
c1	10.0.0.2/32	Loopback
Ethernet1	10.1.0.1/30	c1 -> r1
Ethernet2	10.1.0.9/30	c1 -> c2
Ethernet3	10.1.0.13/30	c1 -> x1
c2	10.0.0.3/32	Loopback
Ethernet1	10.1.0.5/30	c2 -> r1
Ethernet2	10.1.0.10/30	c2 -> c1
Ethernet3	10.1.0.17/30	c2 -> x2
x1	10.0.0.4/32	Loopback
eth1	10.1.0.14/30	x1 -> c1
x2	10.0.0.5/32	Loopback
eth1	10.1.0.18/30	x2 -> c2

To be more precise, the original IS-IS level-1 areas were functionally equivalent to OSPF totally stubby areas, while the level-2 backbone is somewhat equivalent to the OSPF area 0. The main difference between IS-IS and OSPF is the ability to use the same link as part of a level-1 area and the level-2 backbone at the same time. ↩
The flooding of changed LSPs is limited to a single level (area or backbone), but as with OSPF, without the L1 → L2 route summarization, the changes in a level-1 area always spill over into the level-2 backbone. ↩
For example, you could have a level-1-2 router, but limit an interface to be a level-1 circuit. The router will only send level-1 ISHs on that interface. You can also configure a router to be a level-1 router and limit an interface to be a level-2 circuit, resulting in no ISHs. ↩
It does not make sense to configure IS-IS circuit types on level-1 or level-2 routers. They only matter on devices running as level-1-2 IS-IS routers. ↩
Most platforms have a show isis adjacency or a show isis neighbor command to inspect IS-IS neighbors, and a show isis interface command to display the interface parameters. Cisco IOS has a show clns interface command that displays IS-IS interface parameters together with other CLNS-related parameters. ↩
Some implementations, for example Junos and IOS XR, define interface parameters within the interface hierarchy in the routing process. ↩
That’s OK. They belong there. ↩
Even though ECMP is enabled on Arista cEOS, only the first ECMP entry is inserted into the underlying Linux routing table. All inter-area traffic is thus sent to the first default gateway (C1). Other implementations might spray the probe packets across all potential next hops, resulting in an even more interesting traceroute printout. ↩
You can disable ECMP by setting maximum-paths to 1 in the IS-IS process. Some devices expect maximum-paths configured for a routing process, others expect it configured for individual address families. ↩
When an IS-IS process uses N-way ECMP, it chooses the top N equidistant level-1-2 routers based on their SystemID. ↩

Keys	Action
`?`	Open this help
`n`	Next page
`p`	Previous page
`s`	Search
