Build an SR-MPLS Network with IS-IS

Segment Routing with the MPLS dataplane is the best (control-plane) thing that has happened to MPLS in decades. Instead of building a forwarding table and then assigning local MPLS labels to the entries in the forwarding table, SR-MPLS advertises MPLS labels (called Segment Identifiers) directly in IGP. This approach completely eliminates the need for an additional control-plane protocol (LDP) and the synchronization headaches LDP introduces.

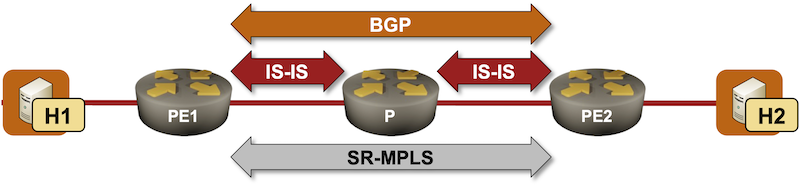

In this lab exercise, you’ll build a BGP-free network core with segment routing (see the BGP-Free Core in a Transit Network lab exercise for a more traditional approach).

Device Requirements

• Use any device supported by the netlab IS-IS and BGP configuration modules for the routers in your lab. The device should also support SR-MPLS with IS-IS
• I recommend using a traditional networking device like Arista EOS. Configuring the MPLS data plane on a Linux container running FRRouting control plane can become an interesting exercise in tweaking underdocumented Linux kernel knobs.
• The hosts (H1, H2) attached to the PE-routers are Linux VMs or containers (depending on the virtualization provider you’re using). You don’t have to worry about them; netlab will handle that detail.

Starting the Lab

You can start the lab on your own lab infrastructure or in GitHub Codespaces (more details):

• Change directory to advanced/10-sr
• Execute netlab up.
• Log into lab routers with netlab connect and verify their configuration.

Existing Routing Protocol Configuration

When starting the lab, netlab configures IPv4 addresses, IS-IS, and BGP on the lab routers.

The PE-routers use the following BGP AS number. Both of them advertise the external (host-facing) subnets into BGP.

Node/ASN	Router ID	Advertised prefixes
AS65000
pe1	10.0.0.1	172.16.0.0/24
pe2	10.0.0.3	172.16.1.0/24

Each PE-router has a single IBGP neighbor (the other PE-router):

Node	Router ID/ Neighbor	Router AS/ Neighbor AS	Neighbor IPv4
pe1	10.0.0.1	65000
	pe2	65000	10.0.0.3
pe2	10.0.0.3	65000
	pe1	65000	10.0.0.1

All routers are running IS-IS on intra-AS links. They are configured as level-2 routers using point-to-point links.

The Problem

After the IS-IS and BGP adjacencies are established, PE1 receives the BGP prefix for the external subnet advertised by PE2 (and vice versa):

BGP table on PE1 running Arista EOS

pe1#show ip bgp
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
Route status codes: s - suppressed contributor, * - valid, > - active, E - ECMP head, e - ECMP
                    S - Stale, c - Contributing to ECMP, b - backup, L - labeled-unicast
                    % - Pending best path selection
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI Origin Validation codes: V - valid, I - invalid, U - unknown
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop

          Network                Next Hop              Metric  AIGP       LocPref Weight  Path
 * >      172.16.0.0/24          -                     -       -          -       0       i
 * >      172.16.1.0/24          10.0.0.3              0       -          100     0       i

However, you can’t ping H2 from H1:

$ netlab connect h1 ping h2
Connecting to container clab-sr-h1, executing ping h2
PING h2 (172.16.1.5): 56 data bytes
^C
--- h2 ping statistics ---
6 packets transmitted, 0 packets received, 100% packet loss

A traceroute executed on H1 indicates that the probe packets arrive at PE1 and then get dropped by the P router. You shouldn’t be surprised by that behavior; the P router is not running BGP and does not know how to reach the external subnets to which H1 and H2 are connected.

$ netlab connect h1 traceroute h2
Connecting to container clab-sr-h1, executing traceroute h2
traceroute to h2 (172.16.1.5), 30 hops max, 46 byte packets
 1  Ethernet1.pe1 (172.16.0.1)  0.004 ms  0.001 ms  0.001 ms
 2  *  *  *
 3  *  *  *

Configuration Hints

You must configure Segment Routing-based MPLS (SR-MPLS) transport across AS 65000 to hide transit traffic into an MPLS LSP. You would usually have to¹:

• Enable MPLS dataplane and IS-IS segment routing on all routers
• Assign a Segment Identifier to the loopback prefixes of the PE-routers

Validation

Use a command similar² to show isis segment-routing to verify that you successfully enabled SR-MPLS for IS-IS (Arista EOS refuses to enable it unless you also enable the MPLS dataplane).

IS-IS SR-MPLS status on PE1 running Arista EOS

pe1#show isis segment-routing

System ID: pe1                  Instance: Gandalf
SR supported Data-plane: MPLS                   SR Router ID: 10.0.0.1
SR Global Block( SRGB ): Base: 900000           Size: 65536
Adj-SID allocation mode: SR-adjacencies
Adj-SID allocation pool: Base: 100000     Size: 16384

All Prefix Segments have    : P:0 E:0 V:0 L:0
IS-IS Reachability Algorithm : SPF (0)
Proxy-node segment attached flag: ignored

Number of IS-IS segment routing capable nodes excluding self: 2

Self-Originated Segment Statistics:
Node-Segments       : 1
Prefix-Segments     : 0
Proxy-Node-Segments : 0
Adjacency Segments  : 1

Check that the PE-routers advertise SR-MPLS TLVs in their LSPs:

Contents of PE2.00-00 LSP on PE1 running Arista EOS

pe1#show isis database pe2.00-00 detail
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
  IS-IS Level 2 Link State Database
    LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
    pe2.00-00                     5  45011  1024    149 L2  0000.0000.0003.00-00  <>
      Remaining lifetime received: 1199 s Modified to: 1200 s
      NLPID: 0xCC(IPv4)
      Hostname: pe2
      Area addresses: 49.0001
      Interface address: 10.1.0.6
      Interface address: 10.0.0.3
      IS Neighbor          : p.00                Metric: 10
        IPv4 Neighbor Address: 10.1.0.5
        IPv4 Interface Address: 10.1.0.6
        Adj-sid: 100000 flags: [L V] weight: 0x0
      Reachability         : 10.0.0.3/32 Metric: 10 Type: 1 Up
        SR Prefix-SID: 3 Flags: [N] Algorithm: 0
      Reachability         : 10.1.0.4/30 Metric: 10 Type: 1 Up
      Router Capabilities: Router Id: 10.0.0.3 Flags: []
        SR Local Block:
          SRLB Base: 965536 Range: 65536
        Area leader priority: 250 algorithm: 0
        Maximum SID depth:
          Base MPLS imposition (MSD type 1):  6
        SR Capability: Flags: [I]
          SRGB Base: 900000 Range: 65536

You can also check the PE1 MPLS forwarding table.

Contents of MPLS forwarding table on PE1 running Arista EOS

pe1#show mpls route
MPLS forwarding table (Label [metric] Vias) - 2 routes
MPLS next-hop resolution allow default route: False
Metric Codes:
          A - Active metric
Via Type Codes:
          M - MPLS via, LP - LDP pseudowire via,
          I - IP lookup via, V - VLAN via,
          VA - EVPN VLAN aware via, ES - EVPN ethernet segment via,
          VF - EVPN VLAN flood via, AF - EVPN VLAN aware flood via,
          NG - Nexthop group via, BP - BGP pseudowire via,
          VP - VPWS pseudowire via, MSP - Static pseudowire via

 100000  A[1]
                via M, 10.1.0.1, pop
                    EgressACL: apply
                    directly connected, Ethernet2
                    52:dc:ca:fe:02:01, vlan 1007
 900003  A[1]
                via M, 10.1.0.1, swap 900003
                    EgressACL: apply
                    directly connected, Ethernet2
                    52:dc:ca:fe:02:01, vlan 1007

Notice the label 900003³; it’s the label for the loopback address of PE2:

• PE-2 advertises an SR Prefix-SID 3 for IP prefix 10.0.0.3/32 (see above)
• Similar to PE-2⁴, the P-router advertises SR Global Block starting at 900000
• PE-1 thus has to use label 900003 when sending packets towards 10.0.0.3/32 to the P-router.

Finally, check the IP forwarding table on PE-1. The BGP prefix 172.16.1.0/24 should have the MPLS label for the BGP next hop (PE-2 loopback interface):

BGP prefixes in the IP routing table on PE1 running Arista EOS

pe1#show ip route bgp
...
 B I      172.16.1.0/24 [200/0]
           via 10.0.0.3/32, IS-IS SR tunnel index 1
              via 10.1.0.1, Ethernet2, label 900003

Last but definitely not least, let’s retry that failed ping:

$ netlab connect h1 ping h2
Connecting to container clab-sr-h1, executing ping h2
PING h2 (172.16.1.5): 56 data bytes
64 bytes from 172.16.1.5: seq=0 ttl=61 time=2.843 ms
64 bytes from 172.16.1.5: seq=1 ttl=61 time=2.450 ms
^C
--- h2 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 2.450/2.646/2.843 ms

Mission Accomplished 😎

Reference Information

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
pe1	Ethernet1	h1	eth1
pe2	Ethernet1	h2	eth1
pe1	Ethernet2	p	Ethernet1
pe2	Ethernet2	p	Ethernet2

Note: The interface names depend on the devices you use in the lab. The printout was generated with lab devices running Arista EOS.

Lab Addressing

Node/Interface	IPv4 Address	IPv6 Address	Description
pe1	10.0.0.1/32		Loopback
Ethernet1	172.16.0.1/24		pe1 -> h1
Ethernet2	10.1.0.2/30		pe1 -> p
p	10.0.0.2/32		Loopback
Ethernet1	10.1.0.1/30		p -> pe1
Ethernet2	10.1.0.5/30		p -> pe2
pe2	10.0.0.3/32		Loopback
Ethernet1	172.16.1.3/24		pe2 -> h2
Ethernet2	10.1.0.6/30		pe2 -> p
h1
eth1	172.16.0.4/24		h1 -> pe1
h2
eth1	172.16.1.5/24		h2 -> pe2
