Suboptimal IS-IS Intra-area Routing
In previous exercises, we saw that every time you use level-1 areas with multiple exit points towards the level-2 IS-IS backbone, you have the potential to create suboptimal routing.
In this exercise, you will see how the design of a level-1 area can impact routing. You will be introduced to IS-IS in-area routing preferences and learn how to solve suboptimal routing induced by incorrect area design. Finally, you will explore what happens when a level-1 area partitions.
Device Requirements
Use any device supported by the Netlab IS-IS configuration module that correctly implements the distribution of intra-area (level-1) routes into inter-area (level-2) backbone.
Unfortunately, this leaves FRRouting off the table. As of February 2026, FRRouting’s IS-IS implementation is incomplete and does not propagate level-1 IP prefixes into the level-2 LSP database as required by RFC 1195. Nevertheless, the implemented parts are solid, and FRR can be used without problems in single-level IS-IS deployments.
Starting the Lab
You can start the lab on your own lab infrastructure or in GitHub Codespaces (more details):
- Change directory to
advanced/4-suboptimal - Execute netlab up
- Log into lab devices with netlab connect
Existing Device Configuration

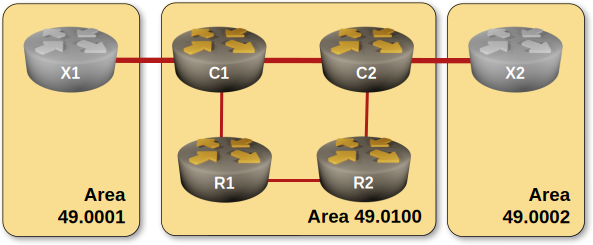

After starting the lab, netlab configures IPv4 addresses and the IS-IS routing protocol on the lab routers. IS-IS parameters of individual lab devices are summarized in the following table:
| Node | IS-IS Area | System ID | IS type |
|---|---|---|---|
| x1 | 49.0001 | 0000.0000.0005 | level-2 |
| x2 | 49.0002 | 0000.0000.0006 | level-2 |
| r1 | 49.0100 | 0000.0000.0001 | level-1 |
| r2 | 49.0100 | 0000.0000.0002 | level-1 |
| c1 | 49.0100 | 0000.0000.0003 | level-1-2 |
| c2 | 49.0100 | 0000.0000.0004 | level-1-2 |
- The links between X1, C1, C2, and X2 are level-2-only high-speed links (low metric).
- The links between C1, R1, R2, and C2 and level-1 low-speed links (high metric).
The Problem
Once you have examined the running configuration of your routers and are familiar with them, examine the path from C1 to R2:
Traceroute from C1 to R2
$ netlab connect c1 traceroute 10.0.0.2
Connecting to 192.168.121.103 using SSH port 22, executing traceroute 10.0.0.2
traceroute to 10.0.0.2 (10.0.0.2), 30 hops max, 60 byte packets
1 r1 (10.1.0.2) 0.050 ms 0.009 ms 0.007 ms
2 r2 (10.0.0.2) 1.103 ms 1.115 ms 1.325 ms
This is interesting. C1 forwards traffic toward R2 over high-cost links, even though it has a cheaper route via C2.
How about the traffic from C1 to C2?
Traceroute from C1 to C2
$ netlab connect c1 traceroute 10.0.0.4
Connecting to 192.168.121.103 using SSH port 22, executing traceroute 10.0.0.4
traceroute to 10.0.0.4 (10.0.0.4), 30 hops max, 60 byte packets
1 r1 (10.1.0.2) 0.052 ms 0.009 ms 0.007 ms
2 r2 (10.1.0.6) 0.955 ms 0.966 ms 1.103 ms
3 c2 (10.0.0.4) 1.473 ms 1.856 ms 2.228 ms
If the previous trace was interesting, this one is downright bizarre. Although C1 is directly connected to C2, the traffic from C1 to C2 uses low-speed links via R1 and R2.
Let’s confirm that the link between C1 and C2 is up and that we have IS-IS running on it:
IS-IS neighbors on C1 running Arista cEOS:
$ netlab connect c1 show isis neighbors
Connecting to 192.168.121.103 using SSH port 22, executing show isis neighbors
Instance VRF System Id Type Interface SNPA State Hold time Circuit Id
Gandalf default r1 L1 Ethernet1 P2P UP 21 12
Gandalf default c2 L2 Ethernet2 P2P UP 27 17
Gandalf default x1 L2 Ethernet3 P2P UP 28 00
That seems OK. Next, let’s examine the routing table on C1:
Routing table of C1 running Arista cEOS
c1#show ip route | begin Gateway
Gateway of last resort is not set
I L1 10.0.0.1/32 [115/30]
via 10.1.0.2, Ethernet1
I L1 10.0.0.2/32 [115/50]
via 10.1.0.2, Ethernet1
C 10.0.0.3/32
directly connected, Loopback0
I L1 10.0.0.4/32 [115/70]
via 10.1.0.2, Ethernet1
I L2 10.0.0.5/32 [115/15]
via 10.1.0.18, Ethernet3
I L2 10.0.0.6/32 [115/20]
via 10.1.0.14, Ethernet2
C 10.1.0.0/30
directly connected, Ethernet1
I L1 10.1.0.4/30 [115/40]
via 10.1.0.2, Ethernet1
I L1 10.1.0.8/30 [115/60]
via 10.1.0.2, Ethernet1
C 10.1.0.12/30
directly connected, Ethernet2
C 10.1.0.16/30
directly connected, Ethernet3
I L2 10.1.0.20/30 [115/10]
via 10.1.0.14, Ethernet2
We can see that IS-IS installed a level-1 route to C2 (metric 70) in C1’s routing table.
At this point, it’s worth examining the internal IS-IS structures, particularly its interpretation of the routing table (Routing Information Base – RIB). A show isis rib command is not available on Arista cEOS (the device commonly used in IS-IS lab exercises), but works on Cisco IOL. Let’s take advantage of Netlab’s device abstraction power and quickly change the devices:
IS-IS Rib entry for C2, as viewed on C1 running Cisco IOL
c1#show isis rib 10.0.0.4 255.255.255.255
IPv4 local RIB for IS-IS process Gandalf
IPV4 unicast topology base (TID 0, TOPOID 0x0) =================
10.0.0.4/32 prefix attr X:0 R:0 N:1
[115/L1/70] via 10.1.0.2(Ethernet0/1), from 10.0.0.4, tag 0
prefix attr: X:0 R:0 N:1
(installed)
[115/L2/15] via 10.1.0.14(Ethernet0/2), from 10.0.0.4, tag 0
prefix attr: X:0 R:0 N:1
The IS-IS RIB printout from Cisco IOL clearly shows that the IS-IS process knows about both routes to 10.0.0.4/32 – an L1 route with a metric of 70 and an L2 route with a metric of 15. Regardless of the metrics, the IS-IS process installs the L1 route into the main routing table.
Tip
You can reproduce the same information from the IS-IS database, but it’s much nicer to have a direct view of the routing process RIB.
This IS-IS behavior is documented in RFC 1195 - chapter 3.10 - Order of Preference of Routes/Dijkstra Computation:
The Integrated IS-IS prefers routes within the area (via level 1 routing) whenever possible. If level 2 routes must be used, then routes within the routing domain (specifically, those routes using internal metrics) are preferred to routes outside of the routing domain (using external metrics).
Aside: Impact of Area Partitioning
Let’s try out something: turn off the R1-R2 link (for example, shut down the R2->R1 interface on R2) to split the area 49.0100, and examine the changes in C1’s routing table:
C1’s routing table after L1 split, Arista cEOS:
I L1 10.0.0.1/32 [115/30]
via 10.1.0.2, Ethernet1
I L2 10.0.0.2/32 [115/35]
via 10.1.0.14, Ethernet2
C 10.0.0.3/32
directly connected, Loopback0
I L2 10.0.0.4/32 [115/15]
via 10.1.0.14, Ethernet2
I L2 10.0.0.5/32 [115/15]
via 10.1.0.18, Ethernet3
I L2 10.0.0.6/32 [115/20]
via 10.1.0.14, Ethernet2
C 10.1.0.0/30
directly connected, Ethernet1
I L2 10.1.0.8/30 [115/25]
via 10.1.0.14, Ethernet2
C 10.1.0.12/30
directly connected, Ethernet2
C 10.1.0.16/30
directly connected, Ethernet3
I L2 10.1.0.20/30 [115/10]
via 10.1.0.14, Ethernet2
Most L1 IS-IS routes we observed earlier are no longer present in the routing table. C2 and R2 are now directly accessible over low-cost L2 routes. Furthermore, we have complete reachability between all our routers.
Since we want the R1-R2 link, this is not a solution, but it suggests we might need better connectivity within the L1 area. Let’s reenable the R1-R2 link and figure out which link we could add to the L1 area to solve the suboptimal routing problem.
Configuration Task
Using the commands you mastered in the Multilevel IS-IS Deployments lab exercise, change the ISIS circuit type on the C1-C2 link to the level-1-2 circuit.
This change improves connectivity within the level-1 area. The C1-C2 link is now not only a backbone link but also an intra-area link.
Validation
Check the IS-IS neighbors on C1. C2 should be a level-1-2 neighbor:
IS-IS neighbors on C1 running Arista cEOS
c1#show isis neighbors
Instance VRF System Id Type Interface SNPA State Hold time Circuit Id
Gandalf default r1 L1 Ethernet1 P2P UP 26 12
Gandalf default c2 L1L2 Ethernet2 P2P UP 27 17
Gandalf default x1 L2 Ethernet3 P2P UP 27 00
Examine the routing table on C1. It should contain an entry for C2 (10.0.0.4) with a low metric (15 on most platforms):
C1’s routing table, Arista cEOS
c1#show ip route 10.0.0.4
...
I L1 10.0.0.4/32 [115/15]
via 10.1.0.14, Ethernet2
The routing table on C1 should also contain a route to R2 via C2:
c1#show ip route 10.0.0.2 detail
...
I L1 10.0.0.2/32 [115/35] PM
via 10.1.0.14, Ethernet2 c1 -> c2
Just to be on the safe side, let’s redo the traceroutes:
Traceroute from C1 to R2
c1#traceroute r2
traceroute to r2 (10.0.0.2), 30 hops max, 60 byte packets
1 c2 (10.1.0.14) 0.085 ms 0.006 ms 0.006 ms
2 r2 (10.0.0.2) 2.048 ms 2.112 ms 2.623 ms
Next: Build an SR-MPLS Network with IS-IS
Reference Information
Lab Wiring
| Origin Device | Origin Port | Destination Device | Destination Port |
|---|---|---|---|
| r1 | Ethernet1 | c1 | Ethernet1 |
| r1 | Ethernet2 | r2 | Ethernet1 |
| r2 | Ethernet2 | c2 | Ethernet1 |
| c1 | Ethernet2 | c2 | Ethernet2 |
| c1 | Ethernet3 | x1 | eth1 |
| c2 | Ethernet3 | x2 | eth1 |
Note
The interface names depend on the lab devices you use. The printout was generated with user routers running Arista EOS and X1/X2 running FRRouting.
Lab Addressing
| Node/Interface | IPv4 Address | IPv6 Address | Description |
|---|---|---|---|
| r1 | 10.0.0.1/32 | Loopback | |
| Ethernet1 | 10.1.0.2/30 | r1 -> c1 | |
| Ethernet2 | 10.1.0.5/30 | r1 -> r2 | |
| r2 | 10.0.0.2/32 | Loopback | |
| Ethernet1 | 10.1.0.6/30 | r2 -> r1 | |
| Ethernet2 | 10.1.0.10/30 | r2 -> c2 | |
| c1 | 10.0.0.3/32 | Loopback | |
| Ethernet1 | 10.1.0.1/30 | c1 -> r1 | |
| Ethernet2 | 10.1.0.13/30 | c1 -> c2 | |
| Ethernet3 | 10.1.0.17/30 | c1 -> x1 | |
| c2 | 10.0.0.4/32 | Loopback | |
| Ethernet1 | 10.1.0.9/30 | c2 -> r2 | |
| Ethernet2 | 10.1.0.14/30 | c2 -> c1 | |
| Ethernet3 | 10.1.0.21/30 | c2 -> x2 | |
| x1 | 10.0.0.5/32 | Loopback | |
| eth1 | 10.1.0.18/30 | x1 -> c1 | |
| x2 | 10.0.0.6/32 | Loopback | |
| eth1 | 10.1.0.22/30 | x2 -> c2 |
