Hide Transit Subnets in IS-IS Networks

Transit subnets (the prefixes configured on inter-router or inter-switch links) could represent a large percentage of the IP routing table in highly meshed networks. Those subnets are usually not used¹ and thus represent pure overhead. Removing them from the IS-IS LSPs would reduce the LSP size and improve the forwarding table convergence time². That’s what you’ll do in this lab exercise.

Device Requirements

• Use any device supported by the netlab IS-IS configuration module for the routers in your lab.
• You can do automated lab validation when using Arista EOS on your routers.

Starting the Lab

You can start the lab on your own lab infrastructure or in GitHub Codespaces (more details):

• Change directory to feature/4-hide-transit
• Execute netlab up. You’ll get a lab with IPv4 addresses configured on all interfaces and level-2 IS-IS routing configured on all routers.
• Log into lab routers with netlab connect and verify their configuration.

The Problem

Most routers in your network are advertising the /30 prefixes configured on inter-router links. The IP routing table on the WAN router contains three IS-IS loopback prefixes (one for each router), one LAN prefix, and two transit prefixes (the third transit prefix is a connected route).

The IP routing table on the WAN router running Arista EOS

$ netlab connect wan --show ip route isis
Connecting to clab-adv_passive-wan using SSH port 22, executing show ip route isis
...
 I L2     10.0.0.1/32 [115/20]
           via 10.1.0.9, Ethernet1
 I L2     10.0.0.2/32 [115/30]
           via 10.1.0.9, Ethernet1
 I L2     10.0.0.3/32 [115/30]
           via 10.1.0.9, Ethernet1
 I L2     10.1.0.0/30 [115/20]
           via 10.1.0.9, Ethernet1
 I L2     10.1.0.4/30 [115/20]
           via 10.1.0.9, Ethernet1
 I L2     172.16.0.0/24 [115/30]
           via 10.1.0.9, Ethernet1

You can see the same information in the IS-IS LSPs. For example, the ACC1 router advertises its loopback, LAN, and transit prefixes:

The IS-IS LSP advertised by ACC1

$ netlab connect -q wan --show isis database acc1.00-00 detail
Legend:
H - hostname conflict
U - node unreachable

IS-IS Instance: Gandalf VRF: default
  IS-IS Level 2 Link State Database
    LSPID                   Seq Num  Cksum  Life Length IS  Received LSPID        Flags
    acc1.00-00                    3  13191  1073    119 L2  0000.0000.0002.00-00  <>
      Remaining lifetime received: 1199 s Modified to: 1200 s
      NLPID: 0xCC(IPv4)
      Hostname: acc1
      Area addresses: 49.0001
      Interface address: 10.1.0.1
      Interface address: 172.16.0.1
      Interface address: 10.0.0.2
      IS Neighbor          : acc2.00             Metric: 10
      IS Neighbor          : core.00             Metric: 10
      Reachability         : 10.1.0.0/30 Metric: 10 Type: 1 Up
      Reachability         : 172.16.0.0/24 Metric: 10 Type: 1 Up
      Reachability         : 10.0.0.2/32 Metric: 10 Type: 1 Up
      Router Capabilities: Router Id: 10.0.0.2 Flags: []
        Area leader priority: 250 algorithm: 0

Configuration Tasks

Many IS-IS implementations contain one or two nerd knobs that can be used to suppress the advertising of transit prefixes. For example, you can control which IP prefixes and which interface addresses the Arista EOS devices advertise.

• Disable the advertising of transit prefixes on all routers in your lab.
• If available, turn off the advertising of transit interface addresses.

Some devices also have the opposite nerd knob that can explicitly suppress the subnet used on the interface.

Problem Solved? Not Yet

Connect to the WAN router and inspect the IS-IS routes in its IP routing table. You’re done if you see the three loopback prefixes and the LAN prefix. However, if you mindlessly followed the above instructions, you’ll get only the three loopback prefixes:

The reduced IP routing table on WAN

$ netlab connect -q wan --show ip route isis
...
 I L2     10.0.0.1/32 [115/20]
           via 10.1.0.9, Ethernet1
 I L2     10.0.0.2/32 [115/30]
           via 10.1.0.9, Ethernet1
 I L2     10.0.0.3/32 [115/30]
           via 10.1.0.9, Ethernet1

Arista EOS allows you to advertise only the prefixes of the passive interfaces, but the LAN segment connected to ACC1 and ACC2 is not (yet) configured as a passive interface.

• Configure the LAN segment as a passive interface on ACC1 and ACC2. The details are in the Passive IS-IS Interfaces lab exercise.

Validation

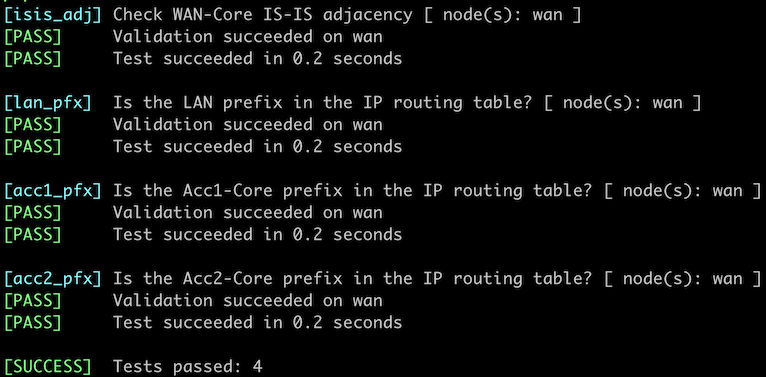

You can use the netlab validate command if you’re using netlab release 1.8.4 or later and run Arista EOS on the WAN router. This is the printout you should get after completing the lab exercise:

You could also manually validate your work. Inspect IS-IS routes in the WAN router’s IP routing table; it should contain three loopback (/32) prefixes and a single LAN (/24) prefix but no transit (/30) prefixes.

Next: Drain Traffic Before Node Maintenance

Reference Information

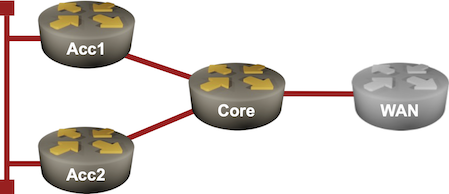

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
core	Ethernet1	acc1	Ethernet1
core	Ethernet2	acc2	Ethernet1
core	Ethernet3	wan	Ethernet1
acc1	Ethernet2	acc2	Ethernet2

Note: The interface names depend on the devices you use in the lab. The printout was generated with lab devices running Arista EOS.

Lab Addressing

Node/Interface	IPv4 Address	IPv6 Address	Description
acc1	10.0.0.2/32		Loopback
Ethernet1	10.1.0.1/30		acc1 -> core
Ethernet2	172.16.0.1/24		acc1 -> acc2
acc2	10.0.0.3/32		Loopback
Ethernet1	10.1.0.5/30		acc2 -> core
Ethernet2	172.16.0.2/24		acc2 -> acc1
core	10.0.0.1/32		Loopback
Ethernet1	10.1.0.2/30		core -> acc1
Ethernet2	10.1.0.6/30		core -> acc2
Ethernet3	10.1.0.9/30		core -> wan
wan	10.0.0.4/32		Loopback
Ethernet1	10.1.0.10/30		wan -> core
